PMC Premium screen is the new generation of sand control screen researched and manufactured by our company;it has the characteristic of simple in construction,easy in operation, high reliability, high intensity and high permeability.

Ⅰ、The Structure of premium Screen

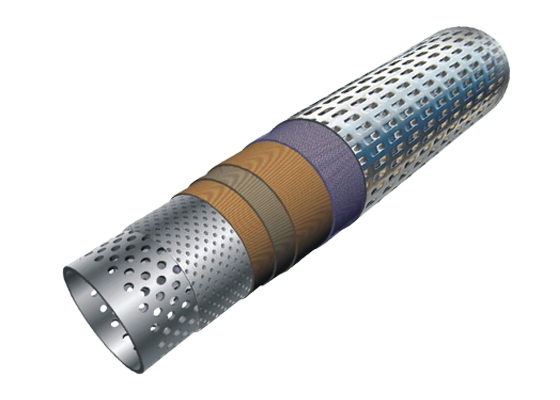

PMC® Premium screen mainly consists of perforated base pipe and filterjacket.  The jacket consists of inner shroud, inner drainage mesh, inner mesh media,  middle drainage mesh, outer mesh media as well as external stainless steel shroud

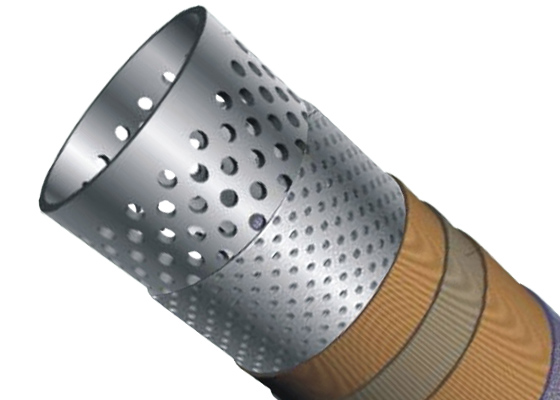

Internal drainage mesh wrapped on the inner shroud, and provides even distribution of flow, it also has the function to support filter media.

Inner/outer mesh media is able to meet the requirements of sand control for all sand with different diameters.

Middle drainage mesh has the function to separate two layers of filter media, ensuring the accuracy of filtering.

It also has the role to provide even distribution of flow for the media.

Stainless steel shroud has the role to protect media layers and drainage mesh when going into well or bear the negative pressure.

Ⅱ、Standard design of  premium Screen
a) According to length

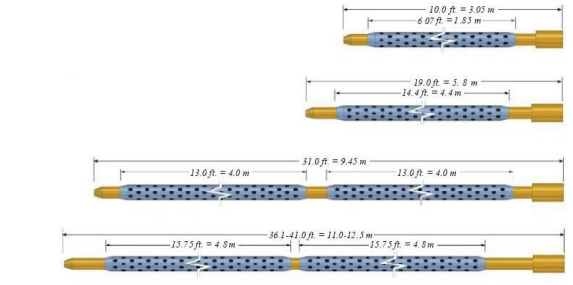

Length: 1.8 -13 meters can according to customer needs to provide all kinds of high quality screen.

b) Model number of screen

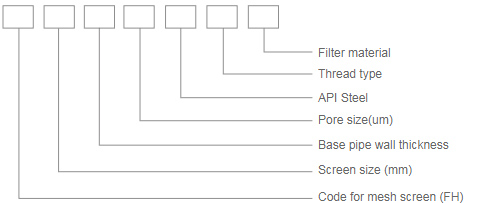

   Model number of COSL mesh screen is made up of product code, screen size, base pipe wall thickness, pore size, steel grade, thread type and filter material,  Naming method is as follows:

[Example]：FH 168-8.94-100 N80 BC A

This model number stands for a INTERCEPTOR screen with a screen size of 168mm, a base pipe wall thickness of 8.94mm, a pore size of 300um, a steel grade of  N80 and a thread type of BTC thread.

Ⅲ、Product Characteristics

● Multi-layer 316L stainless steel filter media has been adopted, with high reliability and anti-damaging ability in sand control.

● High permeability, larger area of flow and production rate is high.

● Small outer diameter, light weight, easy to push along the long horizontal section.

● Anti- acid and alkaline, anti-high temperature, long life for use.

● Simple construction, easy for operation, it benefits to lower the construction expense, and raise the rate of success in construction.

● Premium Screen samples deformed to 75% and 40%of original diameter with virtually no increase in sand production.

Ⅳ、Product Application

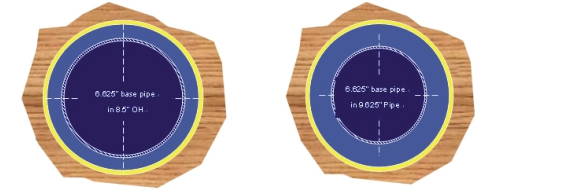

PMC® Premium screen is mainly suitable for barefoot completions especially for oriented well and horizontal well.

The particularity of well opening of the horizontal well causes a low rate of success of the traditional gravel packing completion,and of a big risk. Meanwhile, the horizontal well is requested for higher output, the high permeability can be raised by use of Mesh

screen, and reduce the rate of blockage, therefore increase the production rate.

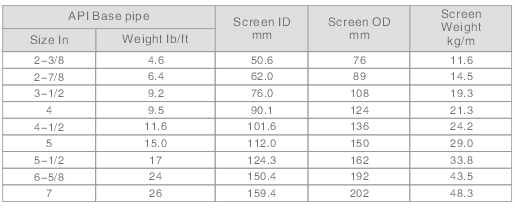

Ⅴ、PMC® Premium Screen Specifications


Ⅵ、Feature of screen and principle of filtration

The multi-layer structure has been used; the filter media is made by 316L stainless steel wire by use of special technology. The filtration accuracy and rate of hole-making can be controlled via controlling of wire diameter and us mesh to be used.

● It’s interwoven by use of 316L stainless steel wire, with high intensity,strong ability to resist breakage.

● High accuracy of filtration, high reliability in sand control.

● High permeability.

● Acid and alkaline resistance, high temperature resistance.

● Easy to reverse wash and long service life.

          Plain dense network structure                  Twill dense network structure

Grit precision series:

Ⅶ、Multilayer metal mesh cloth sand control screen sand control principle

After put down the screen into the well, once the oil well begin production, the sand particles except the fine sand willgradually collect on the surface of the sand control screen, a natural sand bridge of high void level and high permeability has been formed gradually between bare hole well walls and screen. Due to the existing of the sand bridge, not only play the function of hold the sand, and

also release the press of stratum nearby the well openings, the release of stratum press will visibly improve the permeability around the well opening, and therefore enhance the output of the oil well.

Ⅷ、多层金属网布防砂筛管过滤介质渗透性与防砂粒径测试

a)渗透性能测试

  依照GB/T 5250-1993 《可渗透烧结金属材料 流体渗透性的测定》测试过滤介质的渗透性能。

b)挡砂粒径测试

  采用玻璃微珠法测试过滤介质的最大孔径。
